What is the source of the nearly periodic bright points in the horizontal axis of Fig.



Question:

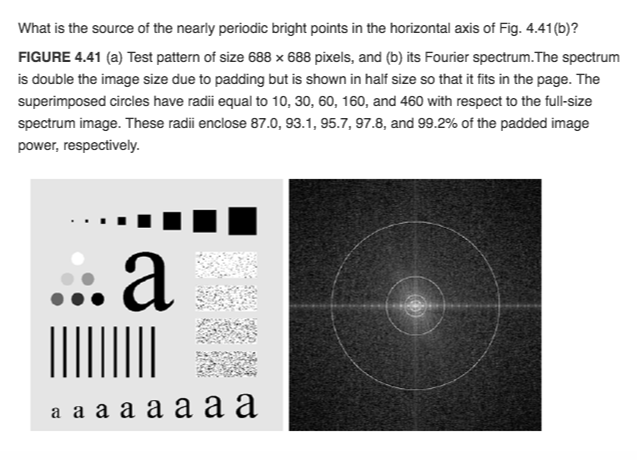

What is the source of the nearly periodic bright points in the horizontal axis of Fig. 4.41 (b)? FIGURE 4.41 (a) Test pattern of size 688 x 688 pixels, and (b) its Fourier spectrum.The spectrum is double the image size due to padding but is shown in half size so that it fits in the page. The superimposed circles have radii equal to 10, 30, 60, 160, and 460 with respect to the full-size spectrum image. These radii enclose 87.0, 93.1, 95.7, 97.8, and 99.2% of the padded image power, respectively. a a a a a a a a

Answer:


Here the nearly periodic bright points from the given frequency spectrum, is corresponds to the periodic bars as well as the

ST

Shorten Link Whatchamacallit Candy

Search This Blog

Powered by Blogger

Labels

Report Abuse

QUESTION 6 (a) The bar shown in Figure Q2(a) is subjected to tensile load of 150 Kn. If the stress in the middle portions is limited to 160 N/mm², determine the diameter of the middle portion. Find also the length of the middle portion if the total elongation of the bar is to be 0.25 mm. E E = 2.0 + 105N/mm². (12 marks) 150 KN 10 cm DIA 10 cm DIA 150 KN 45 cm Figure Q6(a) (b) A brass bar, having cross-section area of 900 mm², is subjected to axial forces as shown in Figure Q2(b), in which AB = 0.6 m, BC = 0.8 m, and CD = 1.0 m. Find the total elongation of the bar. E = 1.0 + 105N/mm2 . (8 marks) Page 4 of 5 B D 40 KN 70 KN 20 KN 10 KN Figure Q6(b) (TOTAL = 20 MARKS)

-
  Question: Show transcribed image text Answer:

Question: A 250-V, 4-pole, wave-wound d.c. series motor has 782 conductors on itsarmature. It has armature and series field resistance of 0.75 ohm. The motor takesa current of 40 A. Estimate its speed and gross torque developed if it has a flux per pole of 25 mWb Answer: Step 1 Mechanical Engineering homework question answer, step 1, image 1 Mechanical Engineering homework question answer, step 1, image 2 Step 2 Mechanical Engineering homework question answer, step 2, image 1 Step 3 Mechanical Engineering homework question answer, step 3, image 1

-
Question: A 250-V, 4-pole, wave-wound d.c. series motor has 782 conductors on itsarmature. It has armature and series field resistance of 0.75 ohm. The motor takesa current of 40 A. Estimate its speed and gross torque developed if it has a flux per pole of 25 mWb Answer: Step 1 Step 2 Step 3
