Question:


i need the answer quickly

Answer:

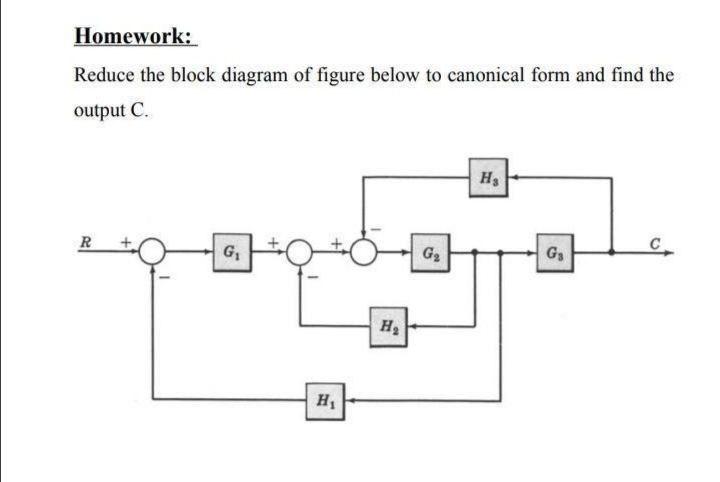

Given that H₂ 개 6 Gi 63 Hy i. By associative low shifting bothe Summing points + R(S) RIS) C(s) ecs) नी tr 9 =; Y Нэ R- GI G2R G3 G₂ G3 1 +G₂H2 HA G3 (1) Eliminating feedback Loop H₃ and G₂ G3 1+ G₂H2 + R G2 G3 G 1+G₂ H2 1+ G₂ G3 H3 1+G2A2 He 번 G₃ R.

ST

Shorten Link Whatchamacallit Candy

Search This Blog

Powered by Blogger

Labels

Report Abuse

Question: A 250-V, 4-pole, wave-wound d.c. series motor has 782 conductors on itsarmature. It has armature and series field resistance of 0.75 ohm. The motor takesa current of 40 A. Estimate its speed and gross torque developed if it has a flux per pole of 25 mWb Answer: Step 1 Mechanical Engineering homework question answer, step 1, image 1 Mechanical Engineering homework question answer, step 1, image 2 Step 2 Mechanical Engineering homework question answer, step 2, image 1 Step 3 Mechanical Engineering homework question answer, step 3, image 1

-
Question: A 250-V, 4-pole, wave-wound d.c. series motor has 782 conductors on itsarmature. It has armature and series field resistance of 0.75 ohm. The motor takesa current of 40 A. Estimate its speed and gross torque developed if it has a flux per pole of 25 mWb Answer: Step 1 Step 2 Step 3

QUESTION 6 (a) The bar shown in Figure Q2(a) is subjected to tensile load of 150 Kn. If the stress in the middle portions is limited to 160 N/mm², determine the diameter of the middle portion. Find also the length of the middle portion if the total elongation of the bar is to be 0.25 mm. E E = 2.0 + 105N/mm². (12 marks) 150 KN 10 cm DIA 10 cm DIA 150 KN 45 cm Figure Q6(a) (b) A brass bar, having cross-section area of 900 mm², is subjected to axial forces as shown in Figure Q2(b), in which AB = 0.6 m, BC = 0.8 m, and CD = 1.0 m. Find the total elongation of the bar. E = 1.0 + 105N/mm2 . (8 marks) Page 4 of 5 B D 40 KN 70 KN 20 KN 10 KN Figure Q6(b) (TOTAL = 20 MARKS)

-
  Question: Show transcribed image text Answer:
